A really great new feature in this release is the possibility to add diagrams in a report AND navigate from the object in a diagram to the detail section in a report.



ea2_20

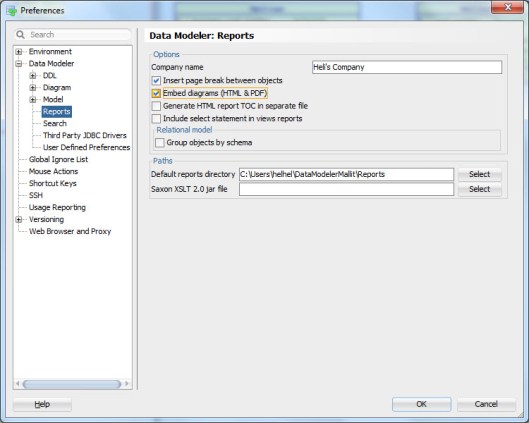

Just set the Preference Embed diagrams (HTML&PDF) on.

In this release there are still some limitations/issues on this functionality but in the next release Data Modeler will allow you to add diagrams in PDF reports to both entity and table reports and in HTML reports it allows you to add diagrams in table reports.

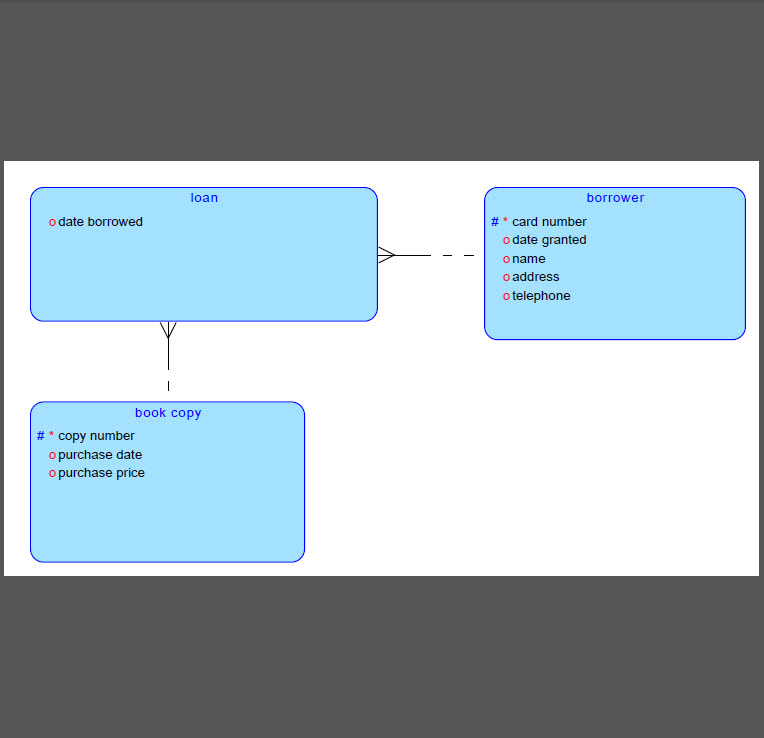

For instance if I have the Preference on and I execute a PDF report for entities, I will have the diagram in the end of the report:

ea_rep1

If I click the name of the entity Loan, it will navigate me to the details of that entity:

ea_rep2

There will also be the TOC for a PDF report and if I choose an element from that I will be automatically navigated to the element details on the report:

toc_pdf

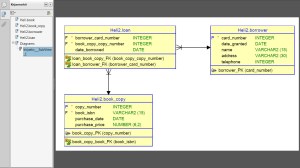

If I have subviews defined I can also see them in the TOC. If I click the name of a subview I will be automatically navigated to that subview in the report:

toc_pdf2
