DDLs for Table synonyms

30 Wednesday Nov 2016

Posted by Helifromfinland in Data Modeler

≈ Leave a comment

In my company we always define synonyms for all the tables. I do not want to manually define them and actually I do not need to see them in my Browser. Is there a way to get the DDLs generated for those synonyms automatically, without defining anything?

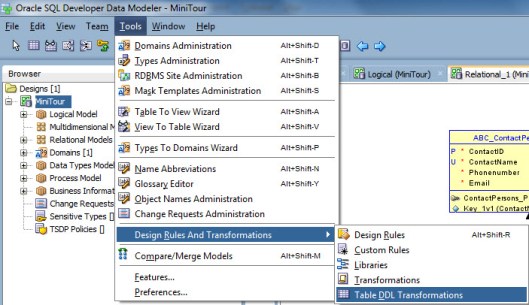

Yes, use Table DDL Transformations.

syn1

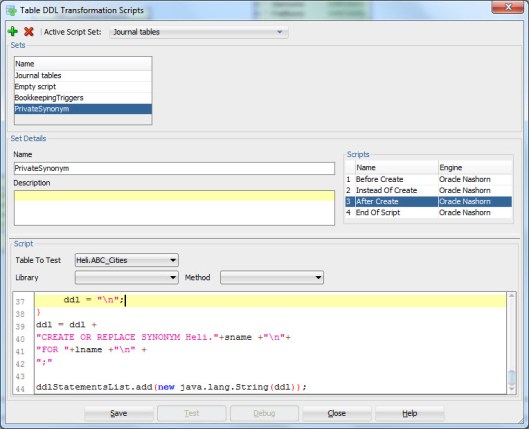

Define the name for the Table DDL Transformation Script (in this example PrivateSynonym), define when it will be triggered (in this example After Create, meaning it will be the last DDL for the table), type the script:

syn2

Press Save. Then you can test the script by selecting one table from the Table to Test list and pressing Test.

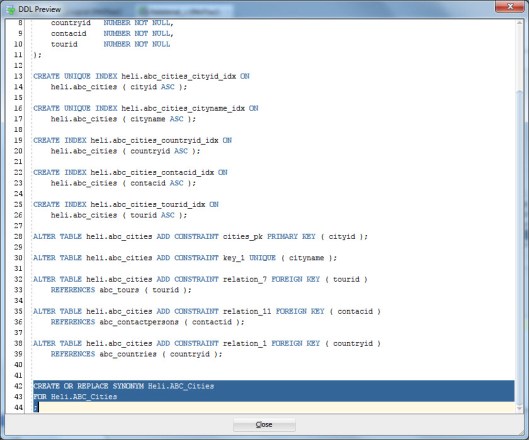

This is what I got:

syn3

NOTE: the synonym is only created for the DDL not the design, you will not see any synonyms in the Browser.

To get the DDL generated select this script in DDL generation:
syn4

Select the tables you want to generate the synonyms and press OK.

P.S. If the DDL File Editor shows blank you might have hit a known bug.

Workaround: Go back to Table DDL Transformations and select the script. Select After Create, type a space, remove it and save the script again.

You can use this script written by Marko Helskyaho, or write your own. This one creates a private synonym for all the tables selected for DDL generation.

/*
variable ddlStatementsList should be used to return the list with DDL statements
that are created by script – as shown below:
ddlStatementsList.add(new java.lang.String(ddl));
other available variables:
– model – relational model instance
– pModel – physical model instance
– table – the table in relational model
– tableProxy – table definition in physical model
*/
var ddl;
var lname;
var sname;
prompt = model.getAppView().getSettings().isIncludePromptInDDL();
useSchema = model.getAppView().getSettings().isIncludeSchemaInDDL();
if(model.getStorageDesign().isOpen()){
if(useSchema){
lname = tableProxy.getLongName();
sname = tableProxy.getName();
}else{
lname = tableProxy.getName();
sname = tableProxy.getName();
}
}else{
if(useSchema){
lname = table.getLongName();
sname = tableProxy.getName();
}else{
lname = table.getName();
sname = tableProxy.getName();
}
}

if(prompt){
ddl= “\nPROMPT Creating Synonym for ‘”+lname+”‘;\n”;
}else{
ddl = “\n”;
}
ddl = ddl +
“CREATE OR REPLACE SYNONYM Heli.”+sname +”\n”+
“FOR “+lname +”\n” +
“;”

ddlStatementsList.add(new java.lang.String(ddl));

#OTNTOUR China, Beijing

30 Wednesday Nov 2016

Posted by Helifromfinland in Events

≈ Leave a comment

In the beginning of November I attended my first OTN APAC Tour and was speaking in Beijing. It was a busy event:

beijing1

And the first ever I could not read the agenda: I needed to ask the local people where and when do I speak ๐Ÿ˜€

beijing2

And I did speak! My first session was about my favourite features of SQL Developer and the second one was about database designing using Data Modeler:

beijing_heli

The Data Modeler session was the last one for the whole event and for some reason the previous session overrun about 45 minutes ๐Ÿ˜ฆ So my session started at the time I was supposed to be finishing…but no worries people stayed and I had a great audience for the session.

beijing_heli2

This was my first visit in China and I want to thank Tony Chen (user group liaison for APAC) for the great hospitality and taking the time (from his extremely busy schedule) to show me a little bit of China. And of course Jennifer for being such a fun company to travel with!

tonyjen

Thank you all my fellow speakers, it was a joy to spend time with you and to learn.

And thank you to the organizers for the great event and the amazing speakers’ dinner! When I was thinking we are done with the eating more food was brought to the table ๐Ÿ™‚

beijingspeakersdinner

And the same food fest was also with the breakfast. I travel a lot and I see many different kinds of breakfasts in hotels but I must say the one in Beijing was one of the best ever: I cannot imagine any food that was not served at the breakfast ๐Ÿ™‚ Just some examples:

beijing_breakfast1

beijing_breakfast2

Travelling is always good but I think this one was really eye-opening: before my trip I did not understand that I should be extremely happy to live in the country that has clean air. In Beijing I though the smog was bad when I arrived:

beijing_smog1

But I learned it can be even worse:

beijing_smog2

I really enjoyed my visit to China but due to the pollution I do not think I could live there. But from now on I will never take our fresh and clean air for granted.

Thank you OTN, the ACE Program and ACOUG!

— Heli

Comments in RDBMS

22 Tuesday Nov 2016

Posted by Helifromfinland in Data Modeler

≈ 1 Comment

I have entered the descriptions in Data Modeler (Comments in RDBMS), for tables and columns, to be implemented in the databaseย  but when I generate the DDL the comments are not there. What am I doing wrong?

Remember the Preferences? That’s the answer again.

Go to Tools, Preferences.

Select Data Modeler, DDL and enable Generate Comments in RDBMS.

commentsddl

Now that you generate the DDLs they will include the Comments in RDBMS you have entered in Data Modeler:

commentsddl2







How to define a prefix for table names?

21 Monday Nov 2016

Posted by Helifromfinland in Data Modeler

≈ Leave a comment

I want to define a prefix for my table names. Can that be done easily? Yes ๐Ÿ™‚

Right-click the name of the relational model in Browser and select Change Object Names Prefix:

prefix1

Select Prefix replacement, type the prefix wanted to the New Prefix field and select Add new prefix. Select Tables. Then press Apply.

prefix2

Now all the tables in selected relational model will have the new prefix in the table name:

prefix3

You can use this also to add prefixes to the names of Views, FK Constraints, Columns, Indexes, or PK&UK Constraints.
